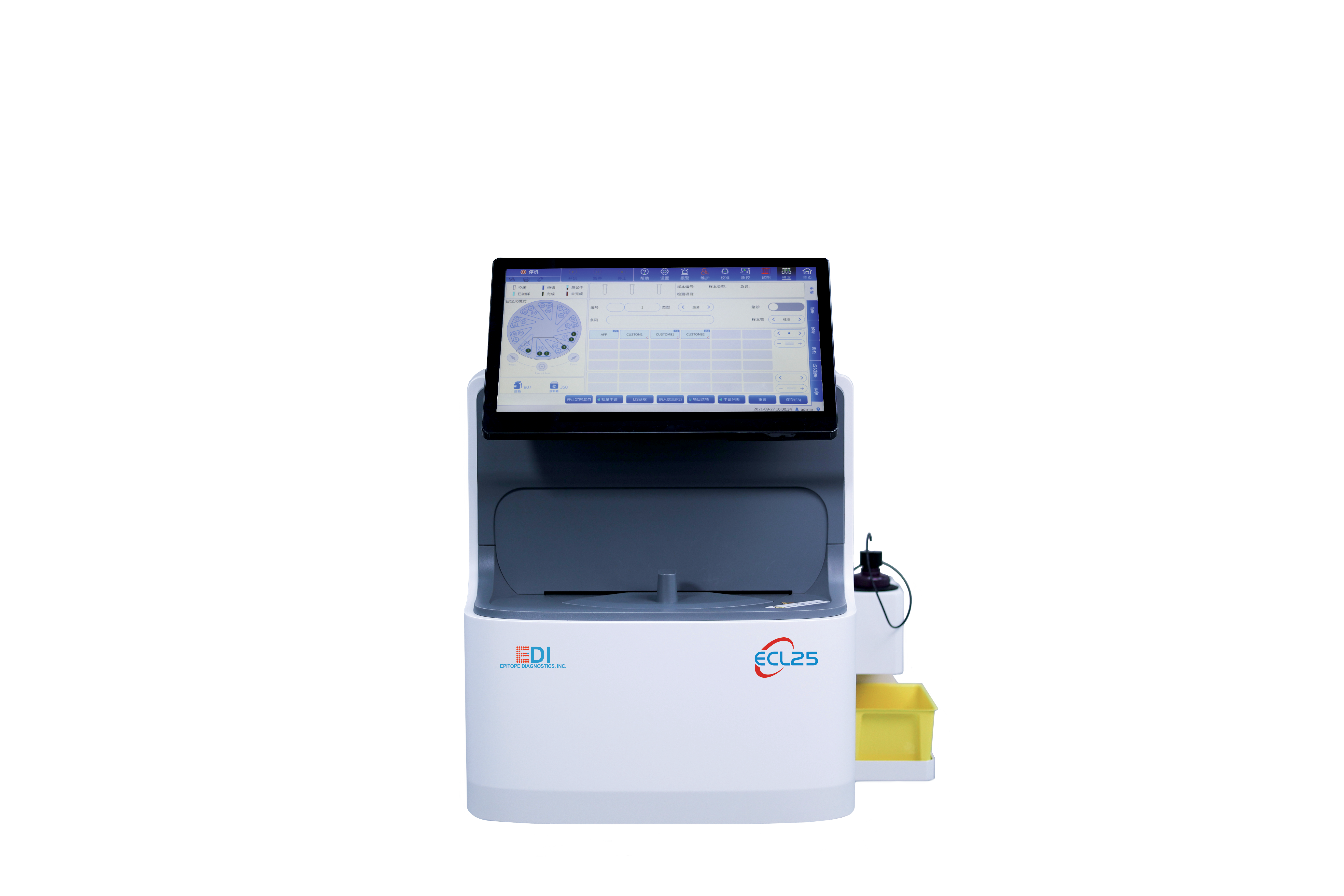

ECL25

Fully Automated Chemiluminescent Immunoassay Analyzer

Advantages of ECL25

  •  Fully automated for routine clinical laboratory operation
  •  STAT feature for emergency sample and in process loading more samples and tests
  •  Very compact and morden bench top CLIA analyser with on board touch screen computer
  •  Multiple ECL25 analyzers for different departments of the lab with dedicated test panels, i.e. emergency cardiac tests, niche serum markers, stool sample GI test panel, etc.
  •  Easy data export to USB port and LIS ready for connection
  •  Very affordable​​​​​​​

Specifications

Catalog no. ECL25
Troughput 120T/H
Onboard Reagent Capacity 10 assays
Dimension 430(W)x680(D)x620(H)mm (control panel included)
Weight ≤62 kg
Power Requirements 100-240V, 50/60 Hz
Power Input 850 VA
Sample Type Serum, Plasma, Extracted Feces
Sample Capacity 30 positions
Reaction Cuvette and Slot Single well cuvette and 52 positions
Incubation Temperature 37±0.3°C sample or 1- 5 grams solid sample.

56+ TEST AVAILABLE

Test Menu Highlight

  • Fecal Calprotectin
  • Fecal Pancreatic Elastase-1
  • Fecal Quantitative Occult Blood
  • Fecal H. Pylori Antigen
  • Fecal C. difficile
  • Fecal C. difficile Toxin A & Toxin B
  • Fecal Giardia lamblia Antigen
  • Fecal Cryptosporidium parvum Antigen
  • Chromogranin A
  • Human Epididymis Protein 4
  • Cancer Antigen 242
  • 25-OH-Vitamin D2/3
  • Carboxylated Osteocalcin
  • Vitamin B12
  • Folate
  • Ferritin
